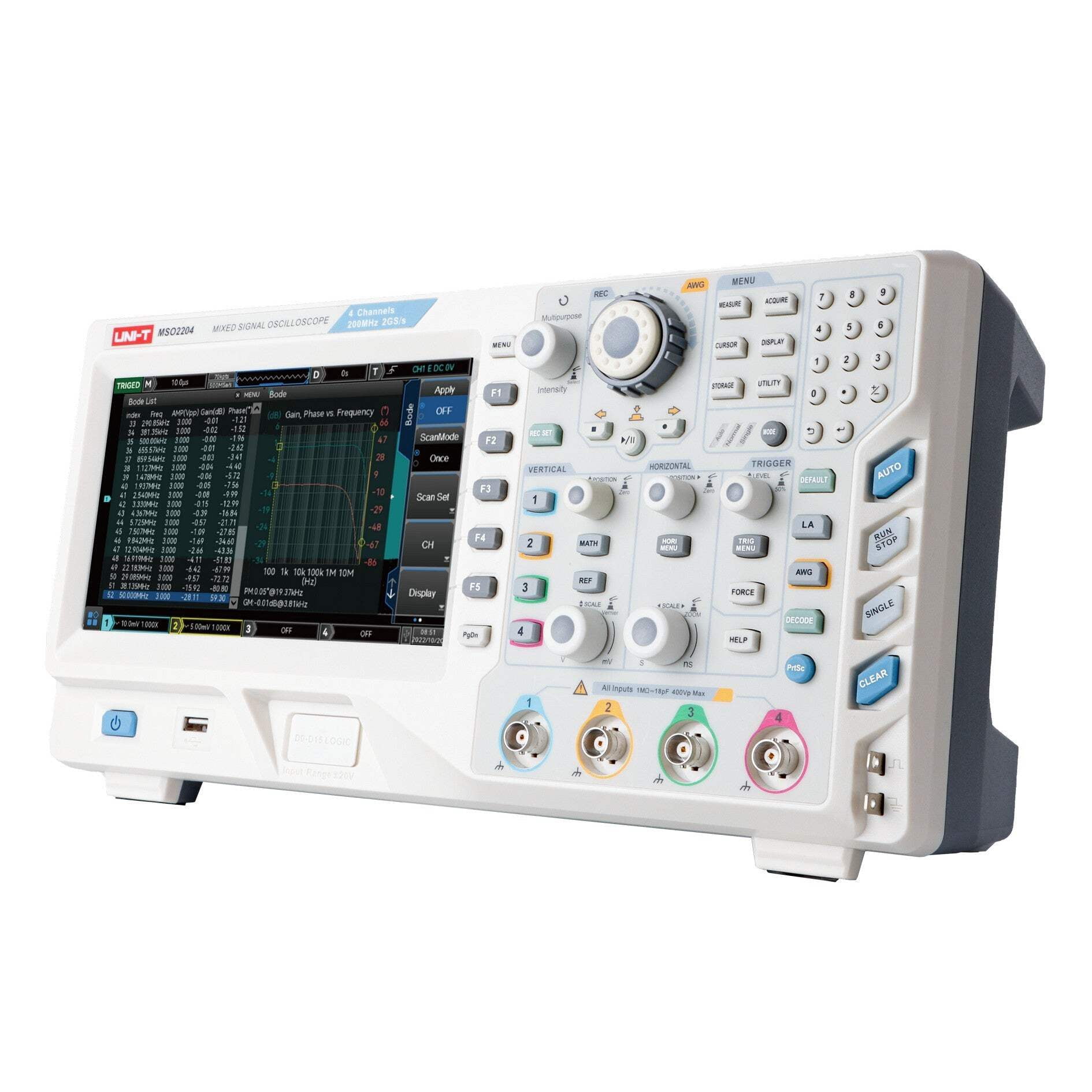

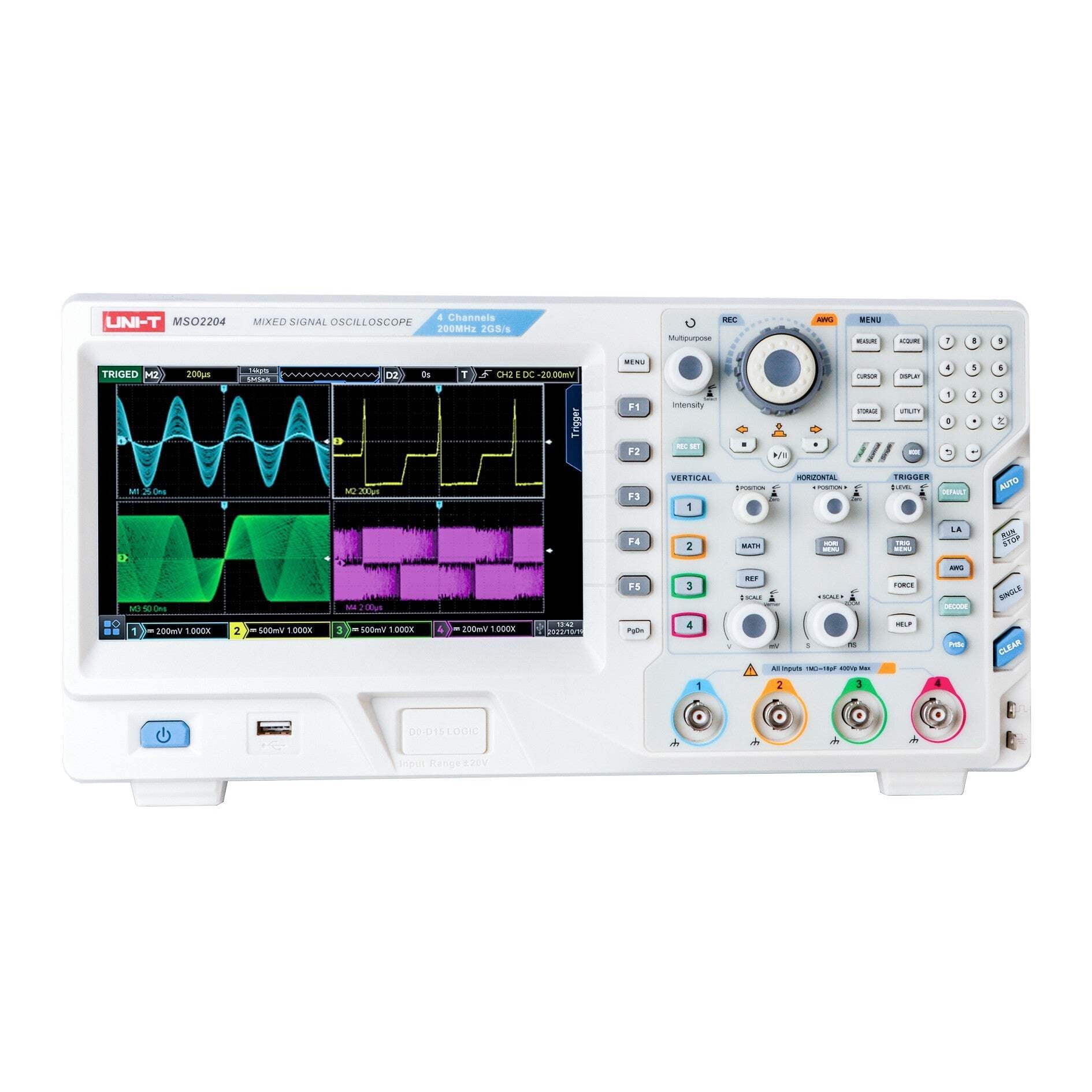

UNI-T MSO2204 200MHz 4+16Ch MSO Mixed Signal Digital Oscilloscope

UNI-T MSO2204 Mixed Signal Oscilloscope (MSO): Your Precision PartnerMSO2204 Oscilloscope Rich trigger function<p>Experience precision measurement and analysis with the UNI-T MSO2204 Mixed Signal Oscilloscope (MSO). This high-performance oscilloscope is built on UNI-T's original Ultra Phosphor technology, offering multifunctionality, ease of use, and outstanding technical indicators. It's designed to accelerate your measurement tasks across various fields, including communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, onsite maintenance, and education.</p>UNI-T MSO2204 Mixed Signal Oscilloscope Key Specifications:<ul><ul><li>BANDWIDTH: 200MHz</li><li>ANALOG CHANNELS: 4</li><li>DIGITAL CHANNELS: 16 (UT-M15 Logic probe included)</li><li>REAL-TIME SAMPLE RATE: 2GSa/s</li><li>MAX. MEMORY DEPTH: 56Mpts</li></ul></ul>MSO2204 Oscilloscope LA Logic Analyzer<ul><li>WAVEFORM CAPTURE RATE: 1,000,000wfms/s</li><li>DISPLAY: 8in Multi-point Capacitive Touchscreen</li></ul><p><strong>Impressive 200MHz Bandwidth:</strong> When evaluating an oscilloscope, consider the frequency of the devices you'll test. The UNI-T MSO2204 Mixed Signal Oscilloscope provides a bandwidth of 200MHz, making it ideal for applications at 40MHz and below, adhering to the "Rule of Five" for speed.</p><p><strong>4 Analog Input Channels:</strong> With four channels, the UNI-T MSO2204 Mixed Signal Oscilloscope allows you to measure multiple signals simultaneously, aiding in debugging circuits, serial protocol work, and video signal analysis.</p><p><strong>Enhanced FFT Analysis:</strong> The UNI-T MSO2204 Mixed Signal Oscilloscope supports full screen, split screen, and waterfall chart views, providing fast and rich frequency domain measurement information. Employ FFT (Fast Fourier Transform) mathematical operations to seamlessly convert time-domain signals (YT) into frequency-domain signals, facilitating analysis of harmonic content, distortion, noise features, and vibrations.</p>MSO2204 Oscilloscope Channel split screen function<p><strong>Rich Trigger Functions:</strong> Benefit from a wealth of advanced trigger options, including edge, pulse width, video, ramp, runt pulse, over-amplitude pulse, delay, timeout, duration, setup hold, Nth edge, and pattern trigger, ensuring precise capture and display of your signals of interest.</p><p><strong>Logic Analysis Probe UT-M15:</strong> Analyze digital signals effortlessly with the included UT-M15, featuring two 8-channel probes for simplified device connections. It offers excellent electrical characteristics with an input impedance of 101kΩ and a capacitive load of only 9.0pF.</p><p><strong>Robust Logic Analysis:</strong> The UNI-T MSO2204 Mixed Signal Oscilloscope excels in parallel bus analysis, protocol decoding, and precise timing measurements, enhancing your analytical capabilities with features like Rank Selection, Data Bus Setting, Group Setting, Event Lists, and more.</p><p><strong>Full Memory Hardware Decoding:</strong> Experience swift decoding with the UNI-T MSO2204 Mixed Signal Oscilloscope’s full-memory hardware decoding capabilities, even under deep storage conditions of 56Mpts, ensuring real-time decoding and improving diagnostic efficiency.</p><p><strong>Generous Memory Depth:</strong> Maintaining a high sampling rate across a wider time base range, the UNI-T MSO2204 Mixed Signal Oscilloscope enhances the capture rate of abnormal waveforms.</p><p><strong>User-Friendly Interface:</strong> Utilizing Multi-Scopes technology, the UNI-T MSO2204 Mixed Signal Oscilloscope offers a more intuitive waveform display, allowing users to explore and analyze details conveniently. Each channel can be customized with different frequency, amplitude, and waveform settings.</p><p><strong>Vivid Grayscale Display:</strong> The original Ultra Phosphor display technology ensures long-term observation of waveform details and occasional abnormalitie</p>
